TECHNICAL DATA

​​ENGRAVING TYPES

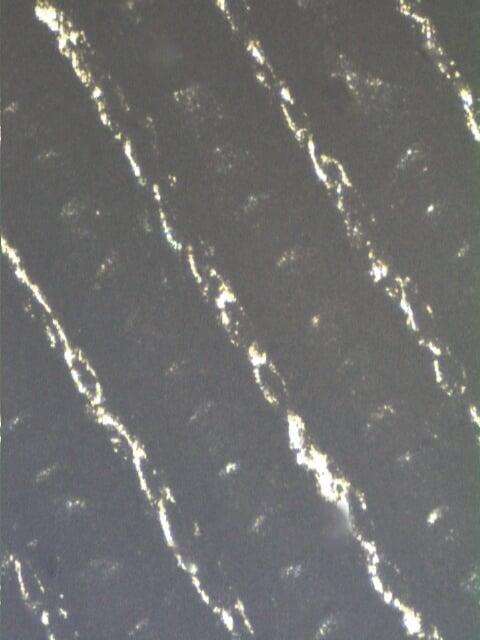

Tri-Helical
​Pattern

For use with tactile varnish,
and glue applications. The Tri-
Helical is literally a paddle-
wheel for picking up and
transferring high viscosity
coatings. Engravings range
from 40 to 250 lines per inch
and volumes of 20 to 100
BCM.

Traditional
​Pattern

The six-sided cell, industry termed “hex” pattern, with its ability to release more ink per square inch than its traditional mechanically engraved counterpart from years
past, the 60° hexagonal shape is used for the majority of traditional flexo ink applications today with
engravings of 40 to 1800 LPI. This pattern is also available at a 30˚angle for more viscous ink applications.

Flo-Thru™
​Pattern

Open cell technology allowing
for smoother laydowns with all ink types. Can minimize
spitting and allow for larger
solid dispositions. Used in
LPI's up to 1200.

V-Force
​Pattern

Exclusive to CTS Industries
and available in limited
applications for RD
technology, technology is
designed for coatings and
special applications creating a
smoother laydown and
removing foot-print issues.
Available in volumes of 5 to 20
BCM.

SUPER FINISHING SOLUTIONS

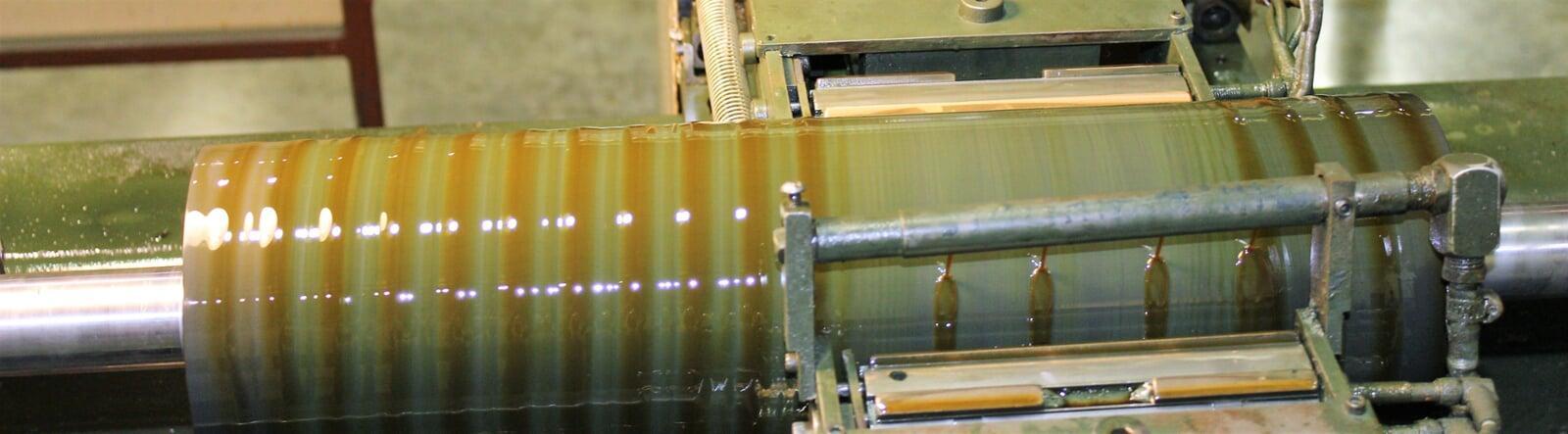

 Super Finish Center
Precision. Speed. Performance.
Engineered to deliver unmatched surface finishes with superior efficiency, the Super Finish Center is the result of over a decade of research, development, and real-world production refinement. It replaces traditional polishing methods with a high-performance system that ensures exceptional accuracy, fast cycle times, and rapid equipment changeovers. Designed specifically for cylinder honing, the system eliminates common issues such as taper and out-of-roundness—producing consistent, high-tolerance results with every run.

Key Features
    ⬡ Ultra-Fine Polishing
            Achieve finishes as fine as 0.02 microns for superior surface quality.
    ⬡ Operator-Friendly Interface
            Simplified controls for intuitive operation and minimal training time.  ⬡
    ⬡ Block Programming
            Streamline production with programmable parameters for repeatable precision.  ⬡
    ⬡ Automatic Stone Changeovers
             Minimize downtime and reduce operator workload with seamless transitions.  ⬡
    ⬡ Flexible Size Options
             Available in 2-meter and 4-meter configurations to meet varying production requirements.

Applications
Built to serve demanding industries where finish quality is non-negotiable:
    ⬡ Graphics & Print Production  ⬡
    ⬡ Automotive Manufacturing  ⬡
    ⬡ Roll & Cylinder Fabrication  ⬡
    ⬡ Aerospace Engineering

FAQ

How do I clean my anilox roller to extend its life?

To extend the life of your anilox roller, wipe it down every time it’s removed from the press. Use a non-caustic cleaner and a white lint-free cloth to remove ink residue, then follow up with rubbing alcohol to evaporate moisture and prevent water spots. This quick clean should supplement a deeper, scheduled cleaning program.

What’s the best way to store my anilox roller when not in use?

Store your roller in the original box it was shipped in. This packaging is designed to protect it from physical damage and contamination. It’s also ideal for safely shipping the roller when sending it out for professional cleaning.

Should I use a cover for my anilox roller when it’s not in use?

Yes. If you have an anilox roller cover, use it whenever the roller is not actively in use. This protects the roller from dust and debris, which can cause surface scoring when the doctor blade scrapes over contaminants.

Can a worn doctor blade damage my anilox roller?

Absolutely. A worn or over-pressured doctor blade can scar the roller surface, especially on fine screen count rollers. Always install a new blade and ensure it lightly “kisses” the roller rather than applying force.

What should I do if I don’t have a roller cleaning program?

We can help. Call us at 1-800-334-7117 to learn more about our NEWLIFE™ Cleaning Technology Program. This professional cleaning service helps restore and maintain roller performance.

Why is regular cleaning so important for anilox rollers? In

Ink buildup, moisture, and debris can quickly degrade the performance and lifespan of your anilox roller. Regular cleaning prevents clogged cells, ensures consistent ink transfer, and avoids costly re-engraving or replacement.

Where can I get more help with roller maintenance?

You can reach our customer service team at 1-800-334-7117. We’re happy to answer questions or help you get started with proper care routines.
